『プリント基板の寸法と公差』

※ シングルユーザーライセンス(データ、英語)版となります。日本語版は未出版です。

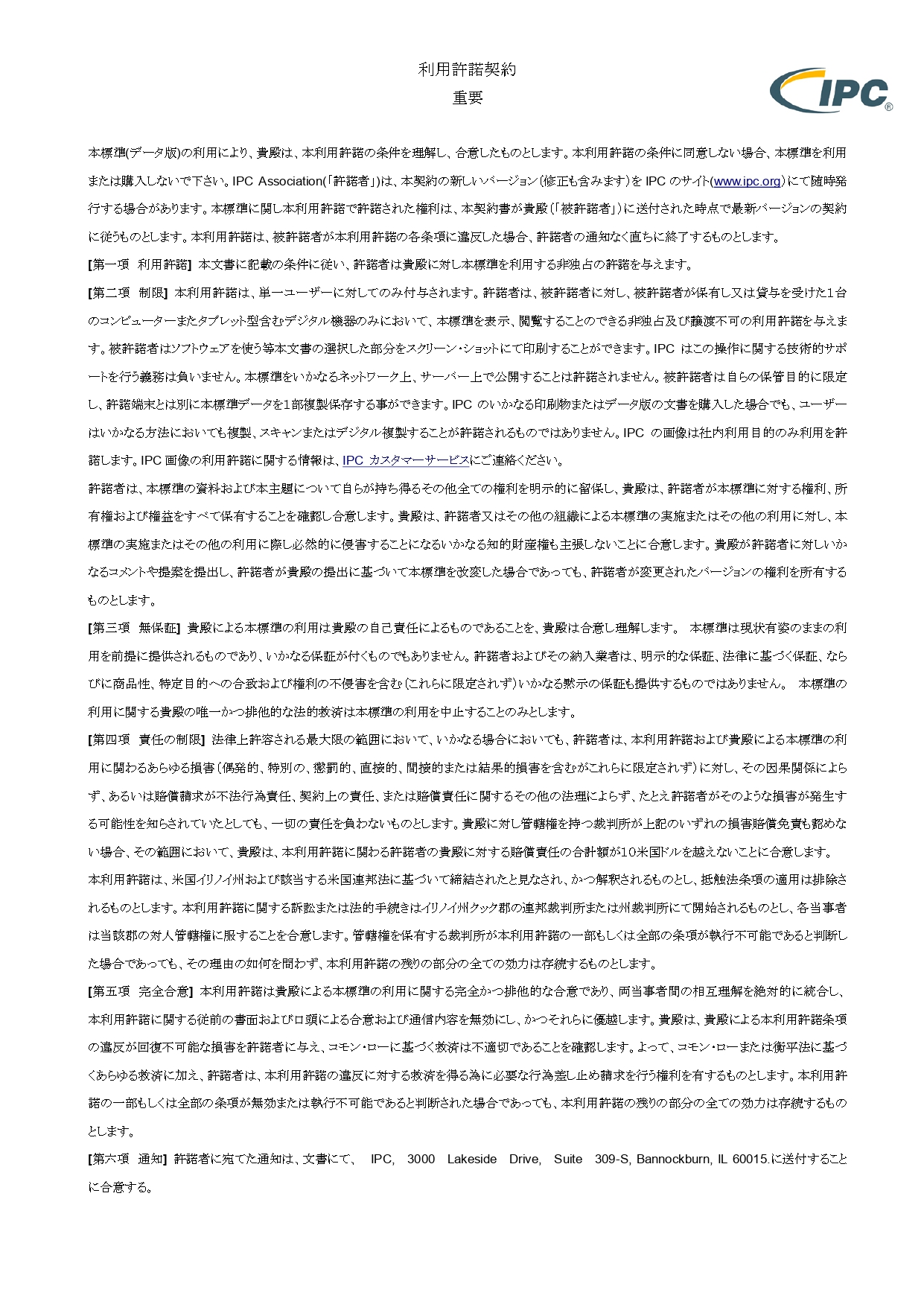

※ ご購入と同時にIPCのユーザーライセンス規約に同意したものとみなされます。画像にあるライセンス規約を予めご確認下さい。
※ ダウンロードと同時に透明タグによる個別IDがPDFファイルに紐付き、印刷及び配布・共有はできません。

【DESCRIPTION】

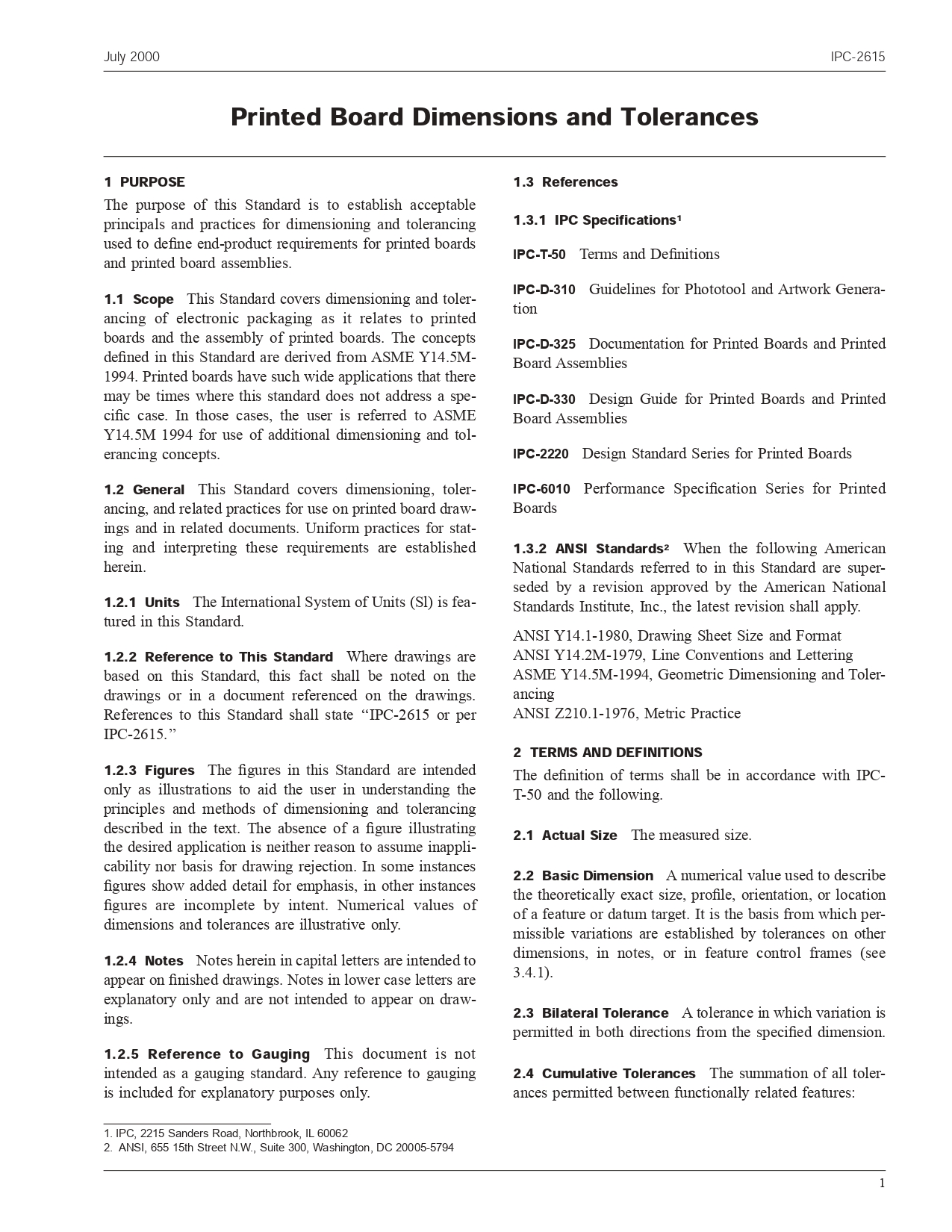

The definitive standard on printed board dimensioning and tolerancing is finally here! IPC-2615 comprehensively covers dimensioning and tolerancing of electronic packaging and is consistent with other IPC printed board standards such as IPC-6012A and IPC-2221A. The document includes fundamental dimensioning and tolerancing rules, positional, profile, orientation and form tolerances and detailed geometric symbology. This new standard encompasses over 100 new and revised illustrations. Invaluable to the PWB designer, this document will help manufacturers and board purchasers achieve the most manufacturable board designs. Supersedes IPC-D-300G for fundamental dimensioning and tolerancing rules.

プリント基板の寸法/公差つき寸法に関する決定的な規格がついに登場!IPC-2615は、電子パッケージの寸法と公差を包括的にカバーし、IPC-6012AやIPC-2221Aなどの他のIPCプリント基板標準と整合している。本文書には、基本的な寸法公差のルール、位置公差、プロファイル公差、方向公差、フォーム公差、詳細な幾何学的シンボルなどが含まれている。この新しい規格は、100以上の新規および改訂された図版を含んでいる。PWB設計者にとって貴重なこの文書は、メーカーや基板購入者が最も製造可能な基板設計を実現するために役立つ。基本的な寸法と公差の規則については、IPC-D-300Gの後継となるものである。

(初版,2000年発行,175頁,英語)
