[英語版]IPC-2226A: Sectional Design Standard for High Density Interconnect (HDI) Printed Boards
データ 英語
商品説明
『高密度配線(HDI)プリント基板の設計』※ シングルユーザーライセンス(データ、英語)版となります。日本語・書籍版の取扱いがございます。

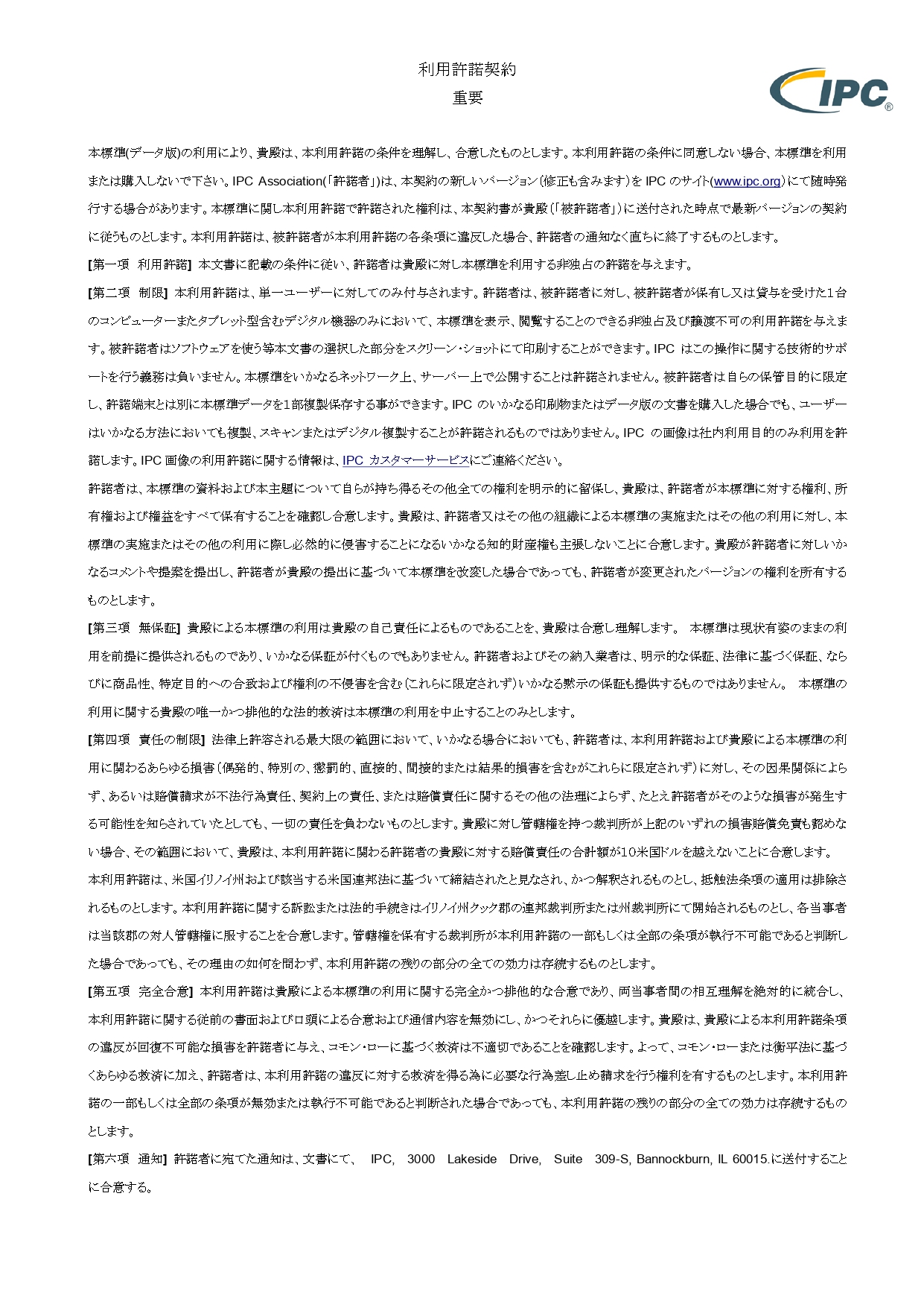

※ ご購入と同時にIPCのユーザーライセンス規約に同意したものとみなされます。画像にあるライセンス規約を予めご確認下さい。
※ ダウンロードと同時に透明タグによる個別IDがPDFファイルに紐付き、印刷及び配布・共有はできません。
【DESCRIPTION】

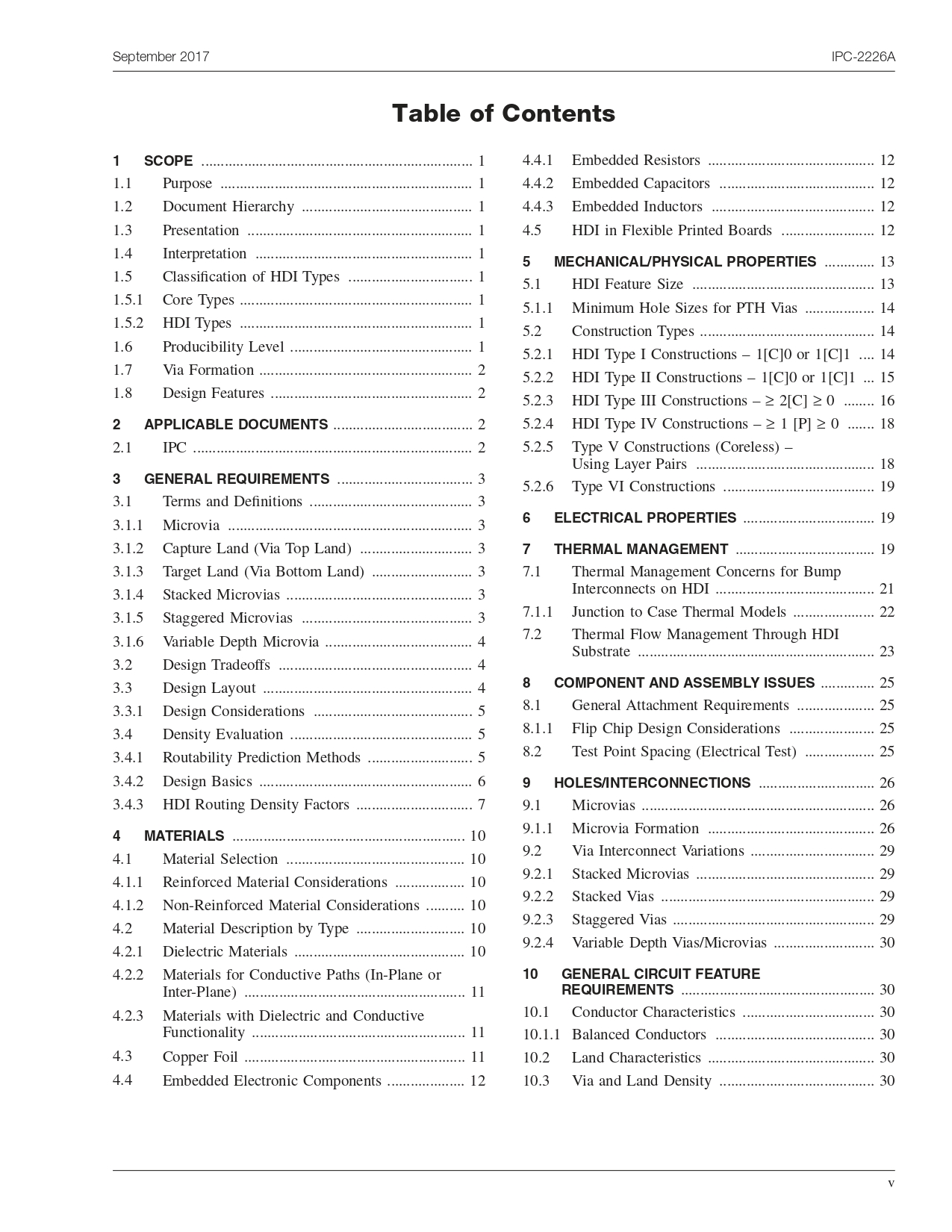

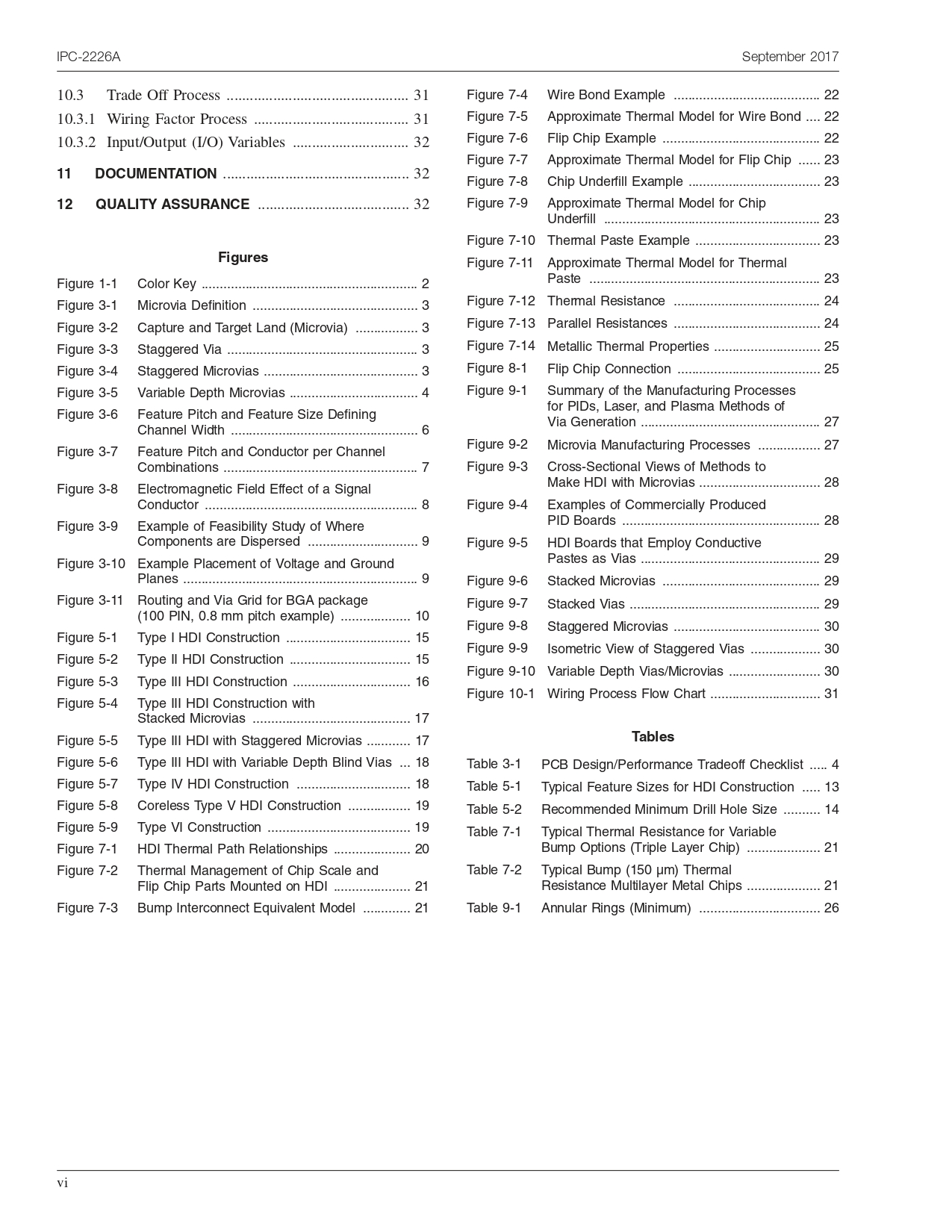

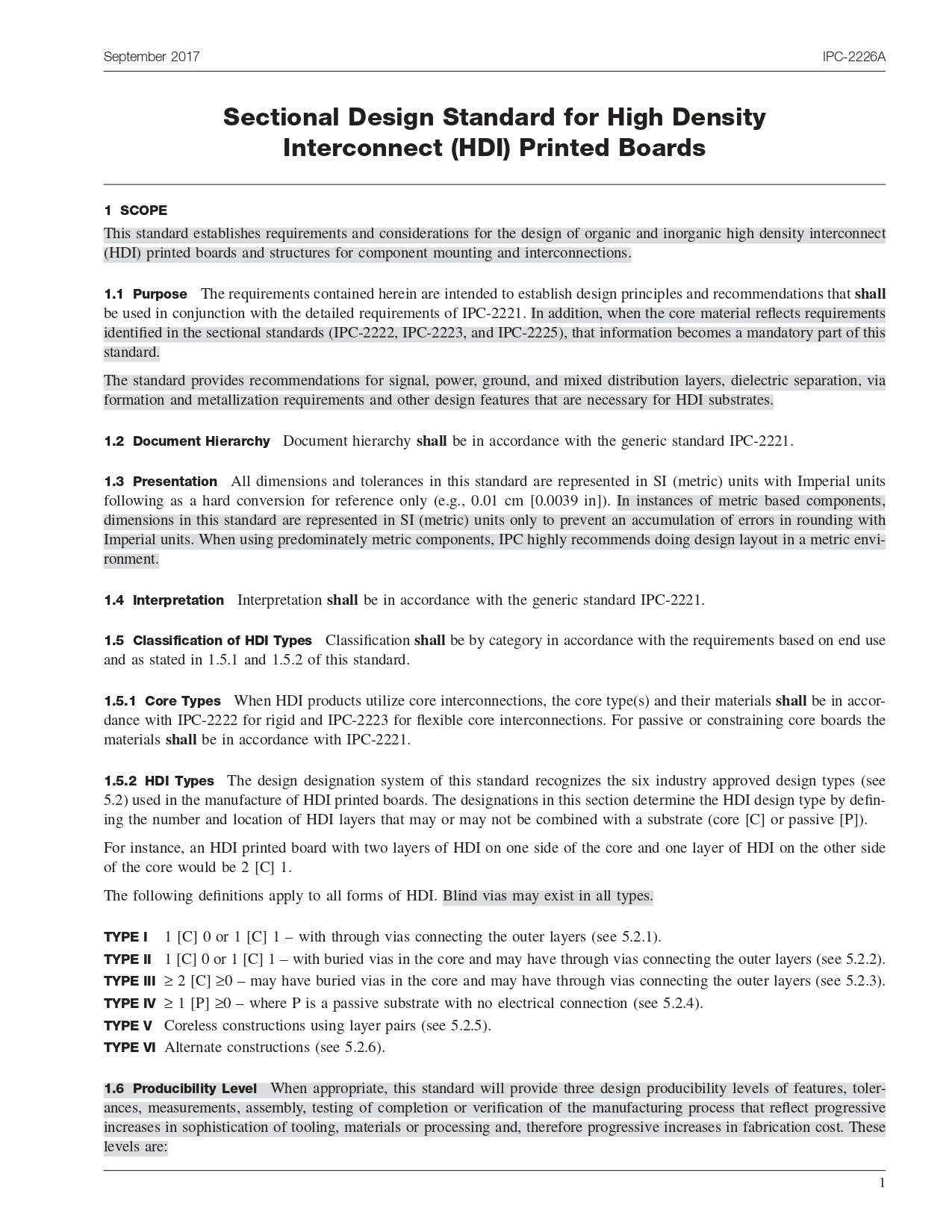

IPC-2226A, Sectional Design Standards for High Density Interconnect (HDI) Printed Boards is used in conjunction with IPC-2221B. The IPC-2226A standard establishes requirements and considerations for the design of high density interconnect (HDI) printed boards and microvia technology. Revision A constitutes a substantial update to the document, with an all new color key for HDI constructions, new coverage of routing density factors and a complete rebuild of feature size recommendations, including aspect ratio, capture and target land sizes. Almost every graphic in Sections 3, 5 and 9 has been revised and/or supplemented with new graphics addressing various microvia formation processes and HDI constructions.
本書『高密度配線(HDI)プリント基板の設計』は、IPC-2221Bと組み合わせて使用される。IPC-2226Aでは、高密度配線(HDI)プリント基板およびマイクロビア技術の設計に関する要求事項と考慮事項を確立している。リビジョンAは、HDI構造のための新規カラーコードや、ルーティング密度要因に関する新規事項、および形体サイズに関する推奨事項(アスペクト比、キャプチャランドサイズ、対象ランドサイズ)など、実質的な最新情報によって構成されている。セクション3、5および9に掲載するほぼすべてのグラフィックは、さまざまなマイクロビア形成プロセスとHDI構造に対応するよう、新たなグラフィックで改訂もしくは補完されている。
(リビジョンA,2017年発行,48頁,英語)
